Post by Pokermind on Thu Jul 07, 2016 5:15 pm

Starting design work on the BITW Tank.  A combination of the French FT-17 and the British Mark 5 rhomboids.  Here is a floor plan so far showing the huge front wheel of the FT-17 and an out rigger Sponson of the Mark-5

The Tank in Blood in the Water 13438833_889004724564874_2535512289186536797_n
Pokermind
Pokermind

Posts : 199
Join date : 2015-07-02
Age : 66

Back to top Go down

The Tank in Blood in the Water Empty Re: The Tank in Blood in the Water

Post by Admin on Fri Aug 05, 2016 8:13 pm

Your proposition seems to be interesting. I would have done more of less the same thing.

Admin
Admin

Posts : 73
Join date : 2015-07-01

http://destroyermen.forumactif.org

Back to top Go down

The Tank in Blood in the Water Empty Re: The Tank in Blood in the Water

Post by Pokermind on Fri Aug 05, 2016 10:44 pm

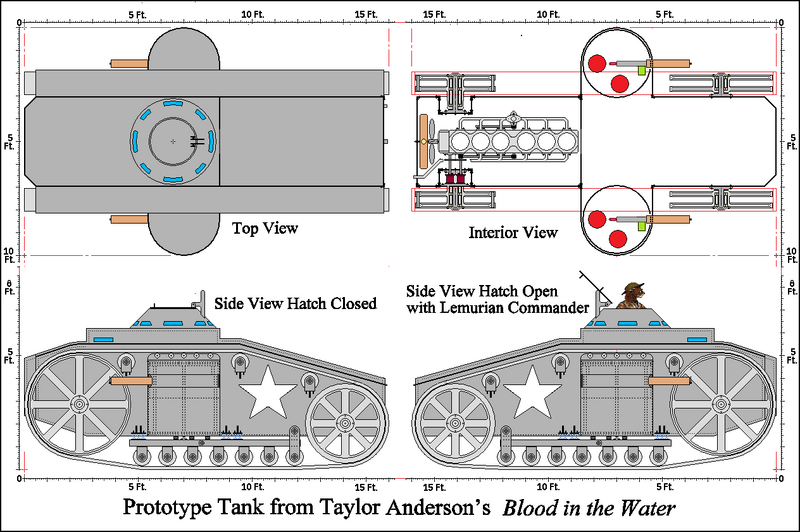

That 4 foot sponson too big for Taylor, here's the 3 foot sponson:

The Tank in Blood in the Water 800?cb=20160805205951

A meter is 3' 3 & 3/8" thus for small numbers of meters 3.25 feet x meters.  The over all size of the tank is 10' x 16' or (((10' or 16') x12inches/foot x 24.5mm/inch)/1000 mm/m) = 3.92m x 4.704m
Pokermind
Pokermind

Posts : 199
Join date : 2015-07-02
Age : 66

Back to top Go down

The Tank in Blood in the Water Empty Re: The Tank in Blood in the Water

Post by Admin on Wed Aug 10, 2016 7:22 pm

Youvcan probably remove the protection above the tracks as mid 20-30 tanks removed them unless they were needed for protection.

I don't see which suspension you use? Torsion bar? Christies?

Admin
Admin

Posts : 73
Join date : 2015-07-01

http://destroyermen.forumactif.org

Back to top Go down

The Tank in Blood in the Water Empty Re: The Tank in Blood in the Water

Post by Pokermind on Thu Aug 11, 2016 6:13 am

Bar like the FT-17 except the bar is longer and more flexable with two sets of springs fore and aft of the Sponsons.
Pokermind
Pokermind

Posts : 199
Join date : 2015-07-02
Age : 66

Back to top Go down
